Universal Testing Machine: Essential Guide to Strength Testing Equipment

Universal Testing Machine: The Cornerstone of Strength Testing Equipment

The universal testing machine is an indispensable tool in the realm of material testing, especially for evaluating the mechanical properties of materials under tensile and compressive forces. This equipment allows engineers and material scientists to determine a material's strength, ductility, and other crucial characteristics, facilitating informed decision-making in material selection and application.

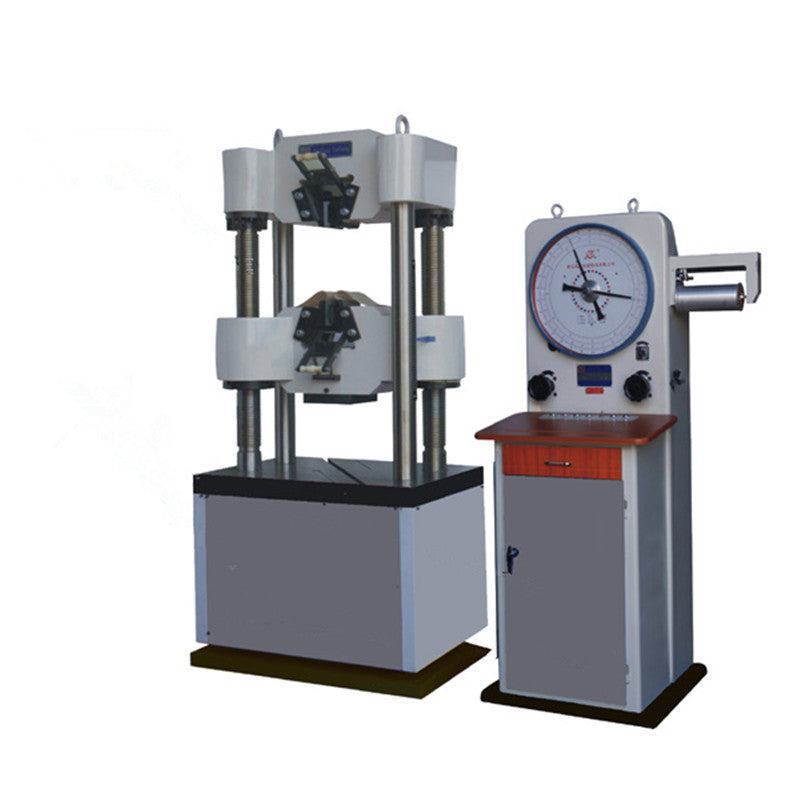

A Universal Testing Machine (UTM) is a piece of equipment used to test the tensile strength and compressive strength of materials. It is also known as a materials testing machine, material testing apparatus, or mechanical testing machine.

The UTM is composed of a load cell, which measures the force applied to the sample, and a crosshead, which moves up or down and applies the force to the sample. The load cell and crosshead are connected by a threaded rod, which allows for precise control of the movement and force applied.

The UTM can perform a variety of tests, including tension, compression, bending, shearing, and tearing tests. It can test a wide range of materials such as metals, plastics, composites, textiles, ceramics, and more.

During a test, a sample is placed between the grips of the UTM and the crosshead moves either upwards or downwards at a constant speed, applying a force to the sample. The load cell measures the force required to deform or break the sample. The UTM software records the data and produces a load versus displacement or load versus time graph, which provides information about the strength and behavior of the material being tested.

UTMs are commonly used in industries such as aerospace, automotive, construction, and materials science, as well as in research and development laboratories, to test the quality and strength of materials used in products and structures.

LABORATORYDEAL India maintains a good quality assurance of all its products and provides lab equipment at affordable and eco-friendly rates. The company provides lab equipment throughout and outside the country and has a network of dealers and distributors in various states, including Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, and West Bengal



In its essence, a universal testing machine (UTM) is designed to conduct a variety of tests, including tensile, compressive, shear, and flexural tests. The versatility it offers makes it suitable for a wide range of materials, such as metals, plastics, rubber, and composites. By using a universal testing machine, you can attain accurate measurements and detailed insights about material behavior, crucial for various industries including aerospace, automotive, construction, and manufacturing.

The fundamental operation of a universal testing machine involves applying a controlled amount of force to a sample, which is then measured and recorded. Typically, a UTM consists of a load frame, a control system, and various fixtures to hold the specimen securely during testing. The load frame usually comprises two horizontal crossheads, one of which is fixed while the other is movable, allowing for the application of tensile or compressive forces.

The control system of a universal testing machine can either be a manual or a computerized setup. In modern machines, computerized systems are prevalent, allowing for enhanced precision, data collection, and analysis. These systems can be programmed to automatically apply load, record deformation, and generate real-time data plots and reports.

A key feature of the universal testing machine is its ability to perform both tensile and compressive tests on a single system without the need for extensive recalibration. This dual capability streamlines testing processes and saves time and resources.

When conducting tensile tests, the specimen is typically placed into the machine's grips. The machine then applies an axial load until the specimen fails. During this process, the amount of force applied and the corresponding elongation of the specimen are recorded, allowing the calculation of important parameters such as tensile strength, yield strength, and elongation at break.

In compressive testing, the specimen is subjected to compressive forces, which is particularly important for materials where compressive strength is a critical design factor, such as concrete and certain metals. Likewise, the data collected helps in assessing compressive properties and understanding the material’s performance under load.

Another notable aspect of universal testing machines is their ability to perform various advanced tests, such as fatigue tests and cyclic loading tests. These tests are essential for understanding how materials behave under repeated loading conditions, which is relevant in real-world applications, particularly in the aerospace and automotive sectors.

It is also worth mentioning the different types of universal testing machines available in the market. They vary considerably in terms of load capacity, testing capabilities, and software features. Some machines are specifically designed for heavy-duty testing while others might be compact and more suited for laboratory environments. When selecting a universal testing machine for your applications, it's crucial to consider these specifications and how they align with your testing needs.

Compliance with testing standards is another critical aspect to consider. Many industries adhere to specific guidelines and international standards, such as ASTM, ISO, and EN standards. A good universal testing machine should have the capability to conform to these testing standards ensuring that any results obtained are reliable and recognized globally.

Maintenance and calibration of your universal testing machine is paramount to ensure accuracy and longevity. Regular calibration against standard loads and thorough maintenance routines will significantly enhance the lifespan and precision of the machine.

In conclusion, the universal testing machine represents a fundamental piece of equipment in the field of materials testing. Its versatility, precision, and capability to provide detailed insights into material properties makes it invaluable across various industries. Whether you're involved in research, quality control, or product development, understanding the functionalities and advantages of a universal testing machine is essential for ensuring the reliability and performance of materials in their respective applications. By investing in a reliable UTM, organizations can improve material selection and design processes, ultimately leading to safer and more efficient products.
