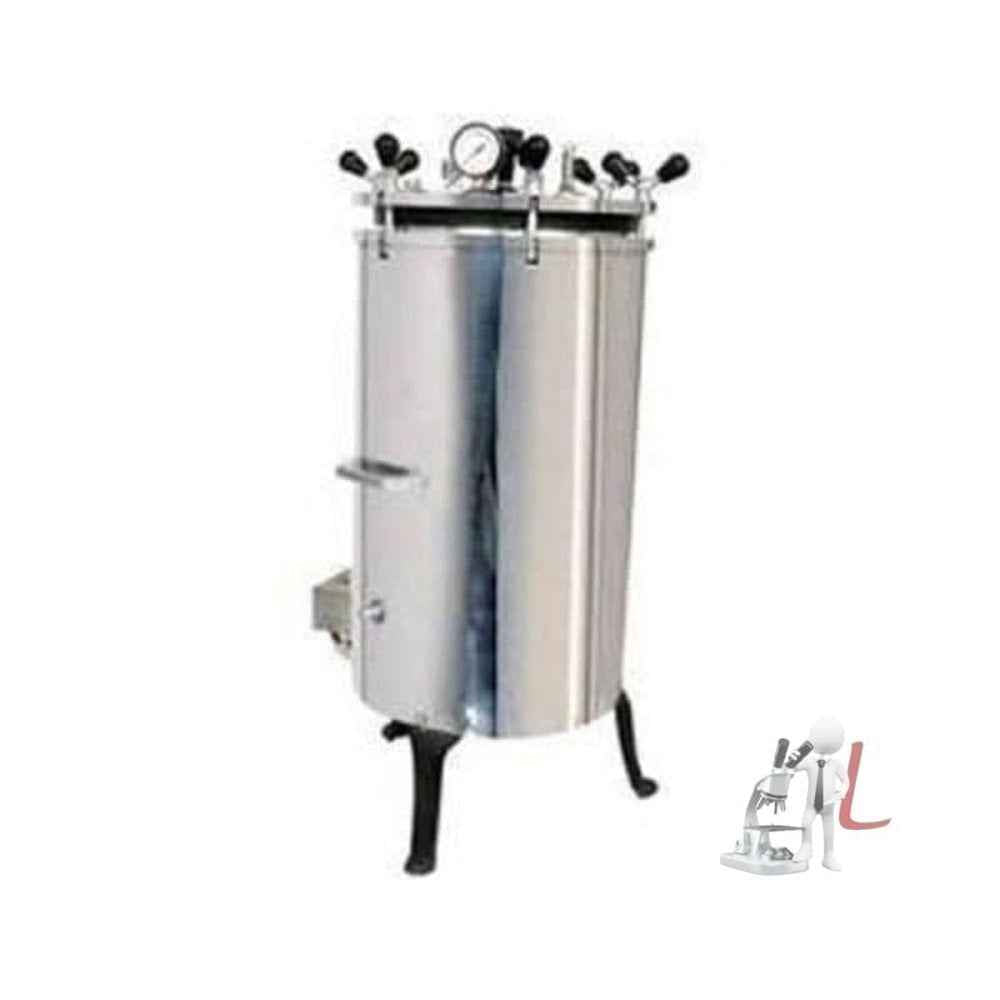

Standard models of Vertical autoclave units manufactured by labpro are available with chamber volumes of22 liters to 175 litersthat accommodate two and three drums accordingly. These systems are designed for meeting effective sterilization requirements in bacteriological and research laboratories, hospitals and clinics and food and beverage units. The vertical chamber design maximizes space utilization, while microprocessor control system enables comfortable working all the time you operate the machine.
Also calledvertical steam sterilizers, our vertical type autoclaves deliver flexible solutions of steam sterilization in hospitals, clinics and other areas of application, where reliable steam sterilization is a mandatory process. Vertically designed chamber provides guaranty of safe and efficient sterilization even in confined spaces. In order to suit specific application, these units are fabricated as fully GMP stainless steeldouble and triple walled construction; in addition, we also manufacture vertical autoclaves with other configurations, which include stainless steel inner and exterior made of Mild Steel (MS).
The most important feature that keeps our range of vertical autoclaves top of others is meeting all relevant guidelines and standards such as NABH standards. As an option, we also provide IQ / OQ / PQ calibration documentation with extra cost. These systems are fully customizable and provided with large scope of customization; to meet individual budget, we can equipment your vertical autoclave with a number of optional accessories such as temperature chart recorder, digital temperature indicator, PID Controller and provision to attach a dot matrix printer.
Tank volume 20 to 175 liters
Equipped with joint less silicon rubber gasket
Provided with immersion type heater
Double, triple wall & GMP construction
Comply with NABL standards
Radial or wing nut type door locking
Supply with drums (extra cost)
Water level indicator
Easy operation and low maintenance
Digital temperature indicator
IQ / OQ / PQ Documentation
Temperature chart recorder
Provision to attach dot matrix printer
USB interface for data transfer
Internal Tank Capacity
10” x 18”
12” x 22”
14” x 22”
18” x 24”
22” x 36”
No.of Drums & Sizes
2 (9” x11”)
2 (9” x11”)
2 (12” x 15”)
3 (12” x 15”)
1.2 kgf/cm sq.g (15 psi - 17 psi) (Can be Upgraded up to 30 PSI)
121°C to 134°C (150°C - Optional)
25 to 30 Minutes
0 to 99 min
Double / Triple wall & SS GMP construction
Mild Steel (304 stainless Steel – Optional)
304 SS (316 / 316L grades Stainless Steel – Optional)
Door / Lid
Foot lifted with safety and interlock device
Door Locking type
Radial Type (Wing Nut Optional)
Water Filling & Removal
Radial locking, safety valve, low water detector and pressure interlock
- PID controller - Low / High water cut-off device - Digital alarm - Temperature chart recorder - Dot Matrix Printer - RS 232 / USB PC Connection Port - NABL certification - Stainless Steel wire mesh carrier - Dressing drum - Sterilization indicator tape - Autoclave bags - PLC control system - IQ / OQ / PQ Documentation
