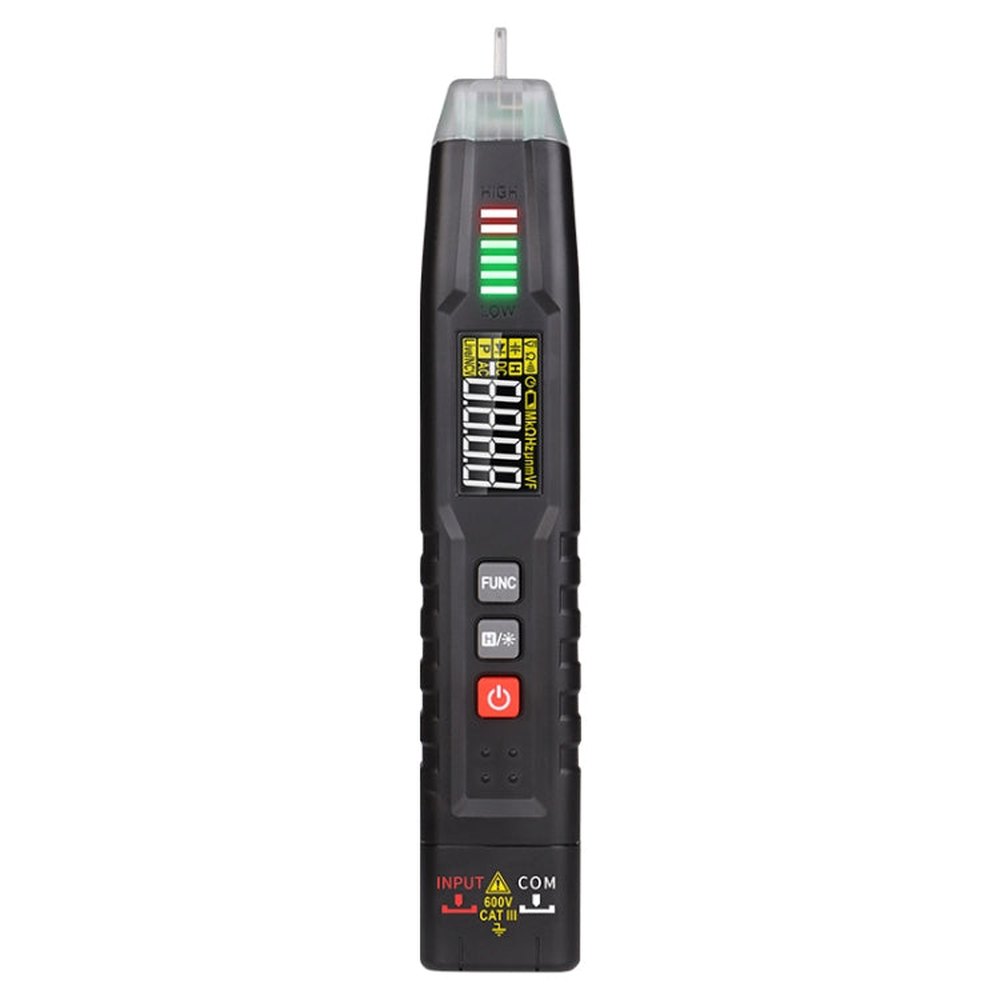

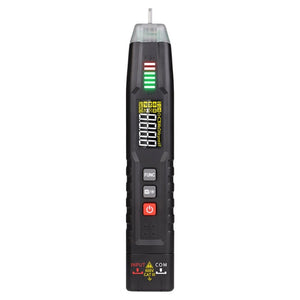

TASI TA13C Smart Pen Multimeter Digital High Precision Compact Portable Multimeter, TA13C

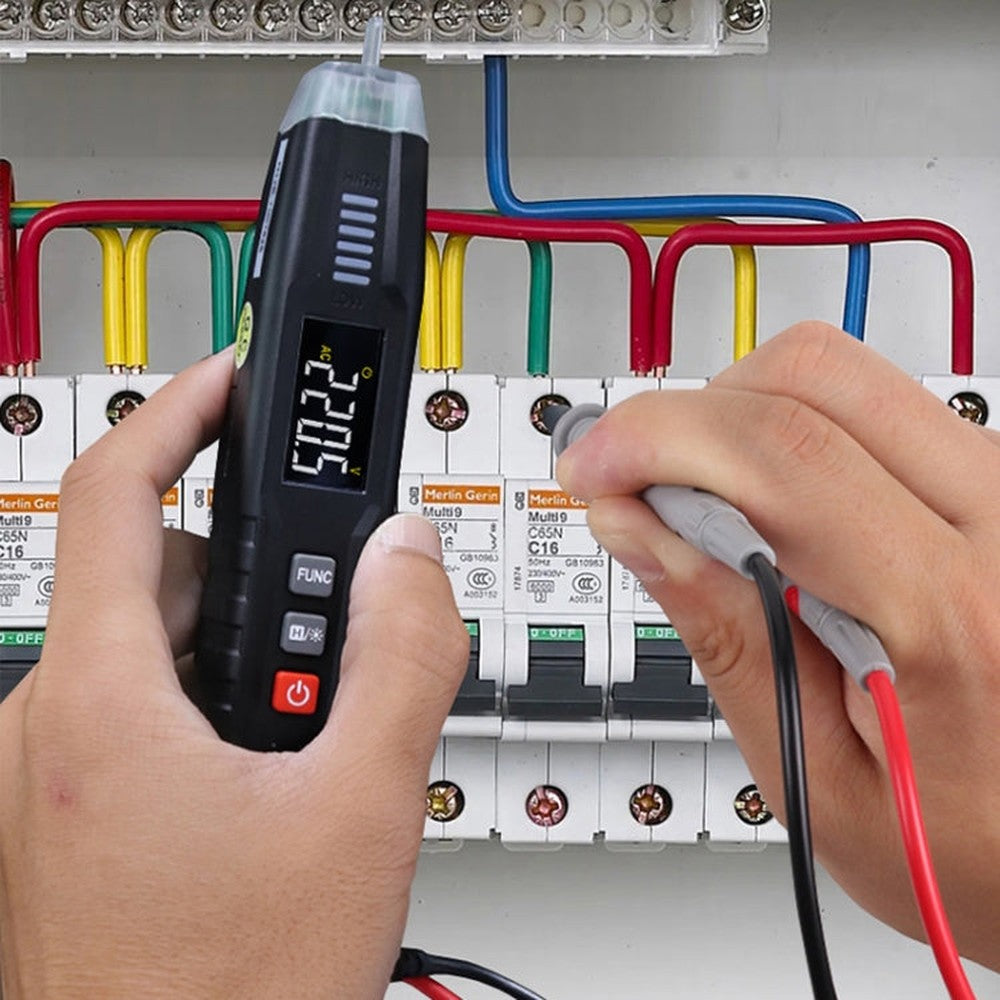

1. Voltage: Range: 0.8-600V; Resolution: 0.01-1V
2. Capacitance: Range: 1nF-4mF; Resolution: 0.01nF-0.001mF
3. Resistance: Range: 1 ohm-40 megohm; Resolution: 1 ohm-0.01 megohm
4. Frequency: 40Hz-4MHz
5. Display: four-digit display, up to 4000
6. Functions: on-off beeping, diode measurement, zero-firewire identification, NCV sensing, phase sequence judgment, flashlight illumination, VA color screen, data retention, auto-ranging
7. Sampling rate: 3 times / sec
8. Auto shutdown: 15 minutes

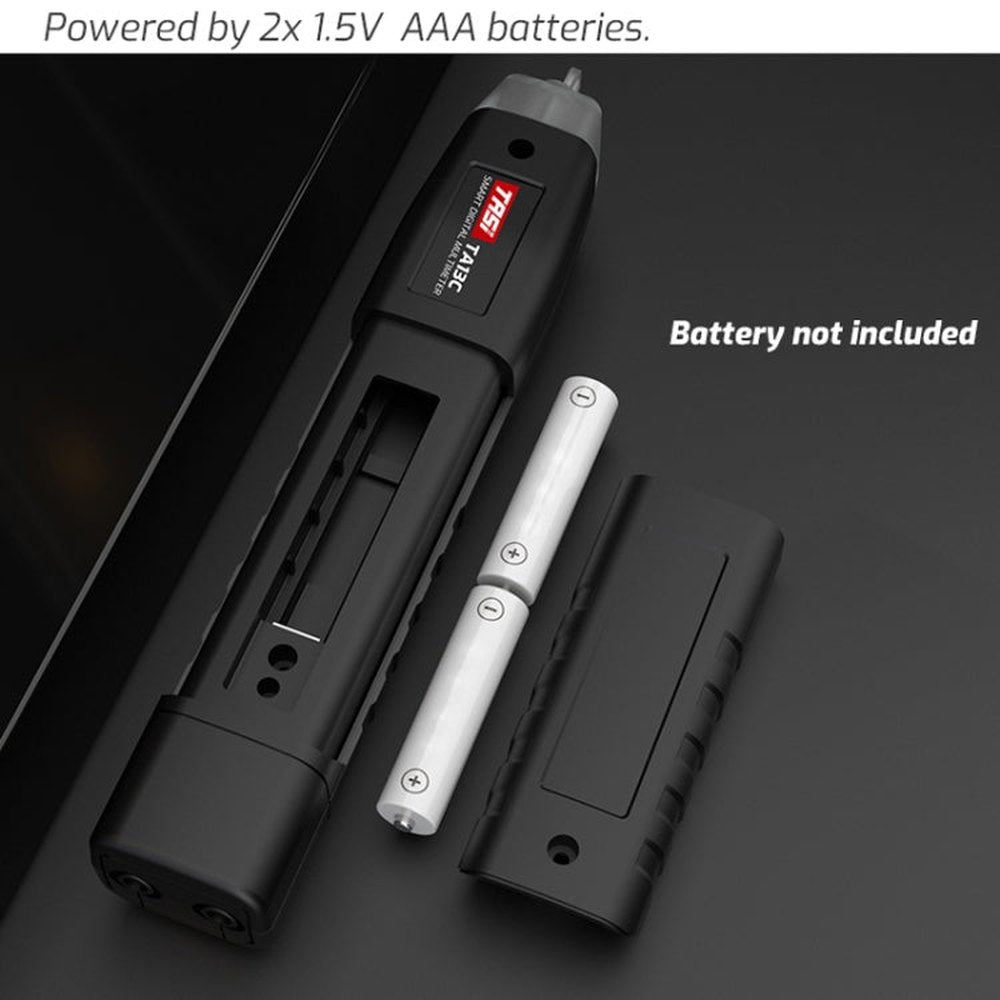

9. Power supply: 2 x 1.5V AAA batteries (not included)
10. Operating environment: -10-40 degrees Celsius, within 80% relative humidity
11. Storage environment: -10-60 degrees Celsius, 70% relative humidity (remove the battery)

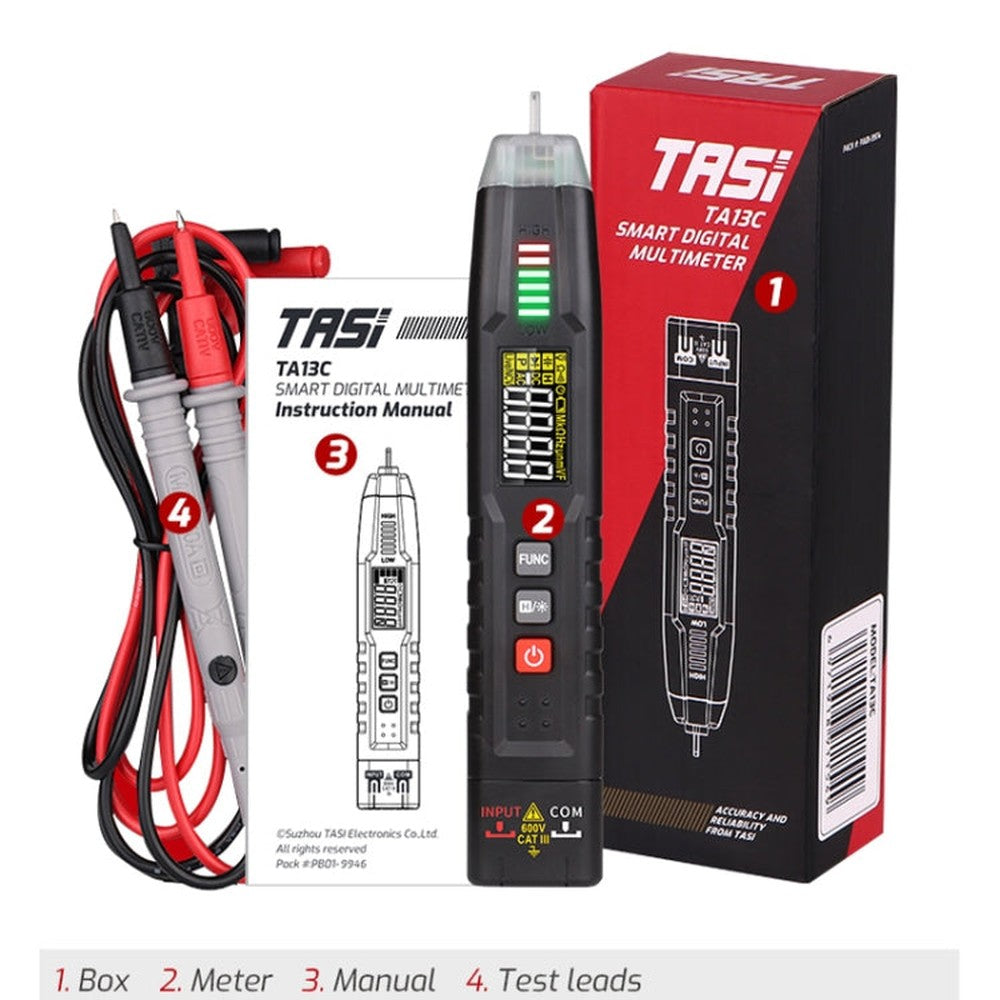

12. Packing list: main unit x 1, meter pen x 2, manual x 1

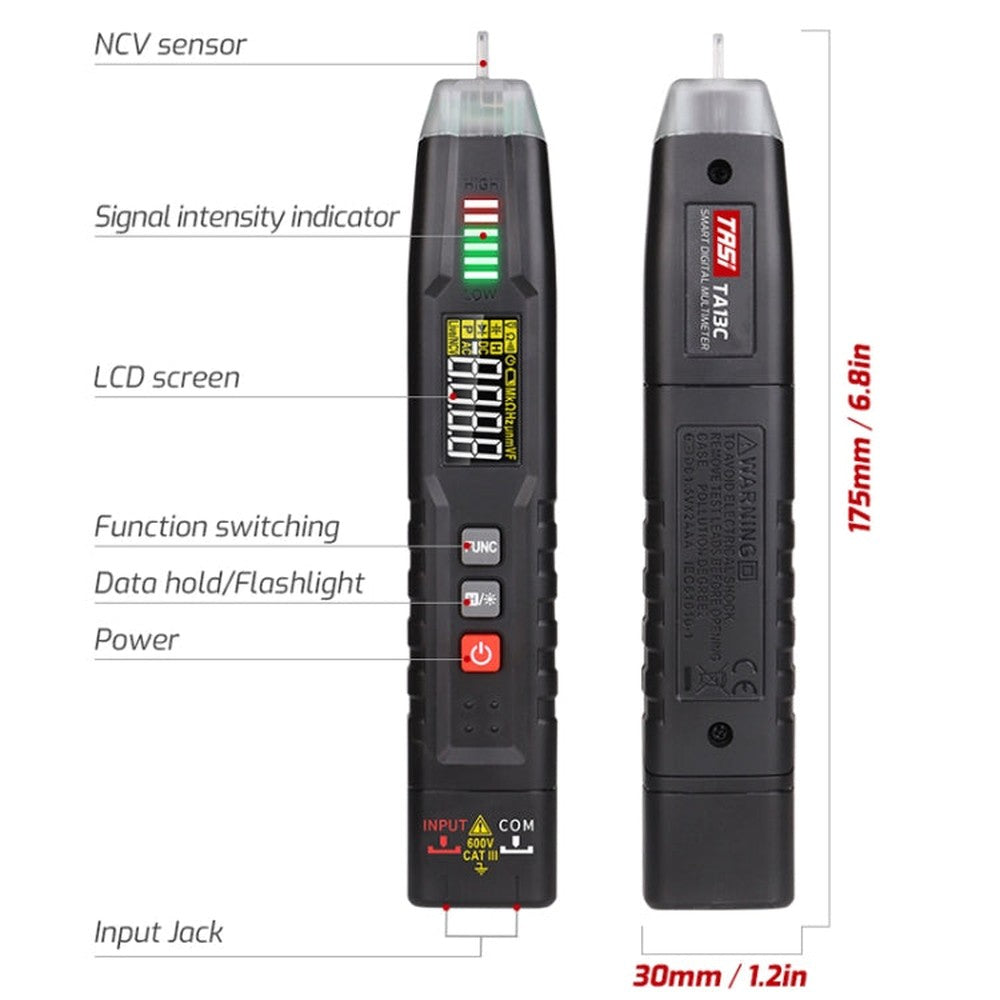

13. Overall size: about 17.5 x 3 x 2.6cm
14. Display size: about 3 x 1.5cm
15. Weight: about 76g

Features:

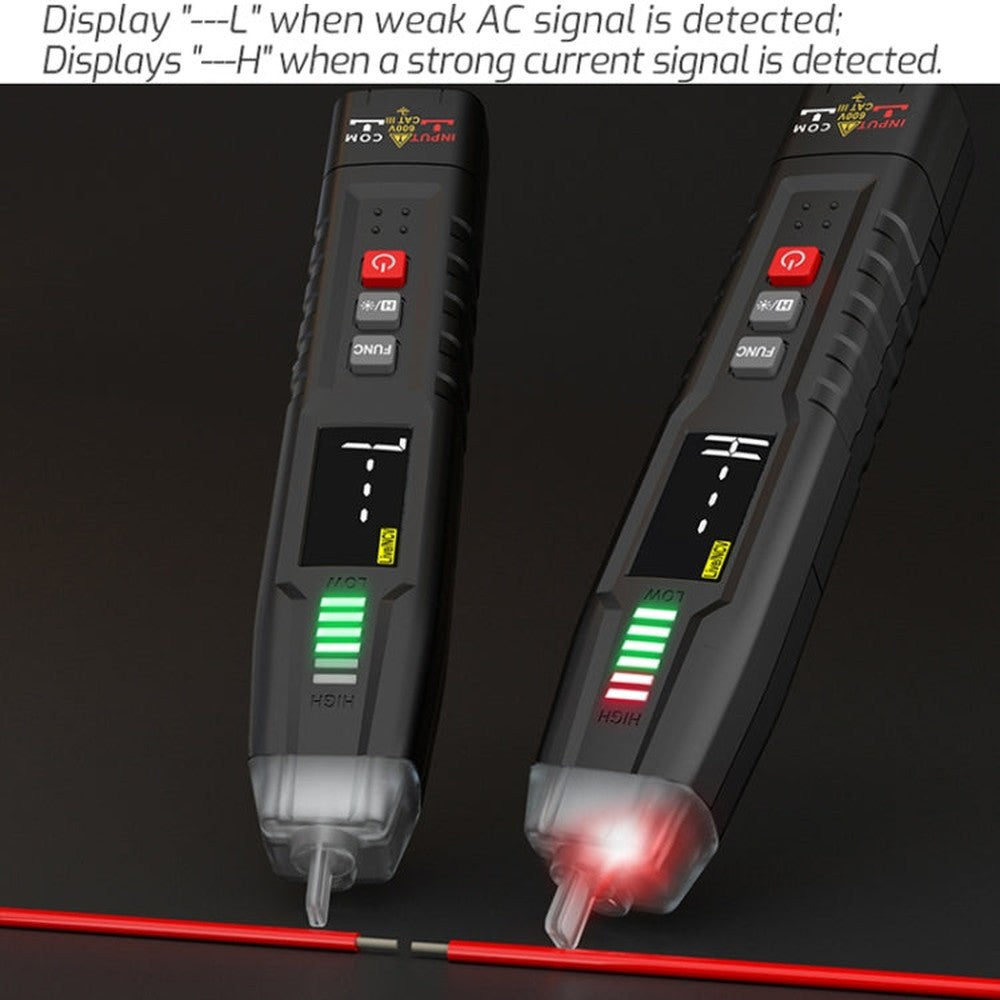

1. NCV voltage sensing

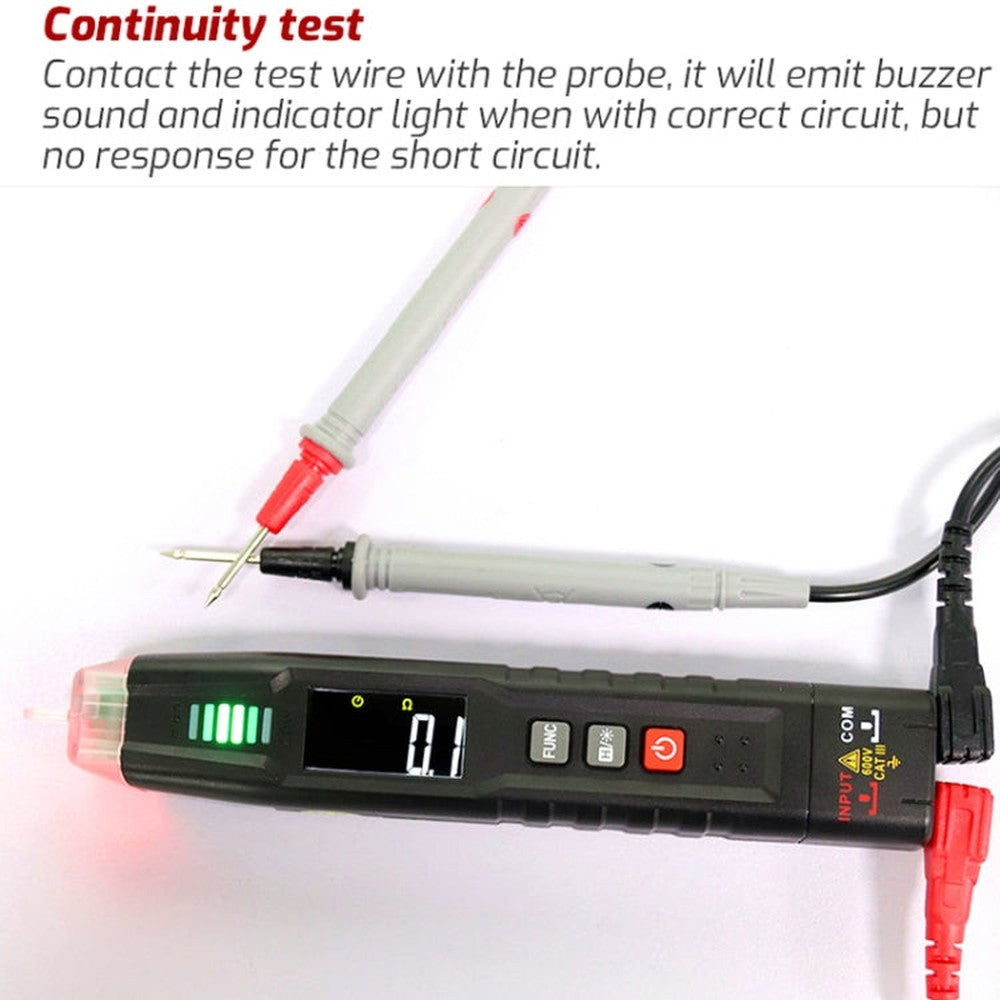

2. Pen tip contact to the measured line ends, the path will send out an alarm tone and indicator light prompts, broken circuit is no response

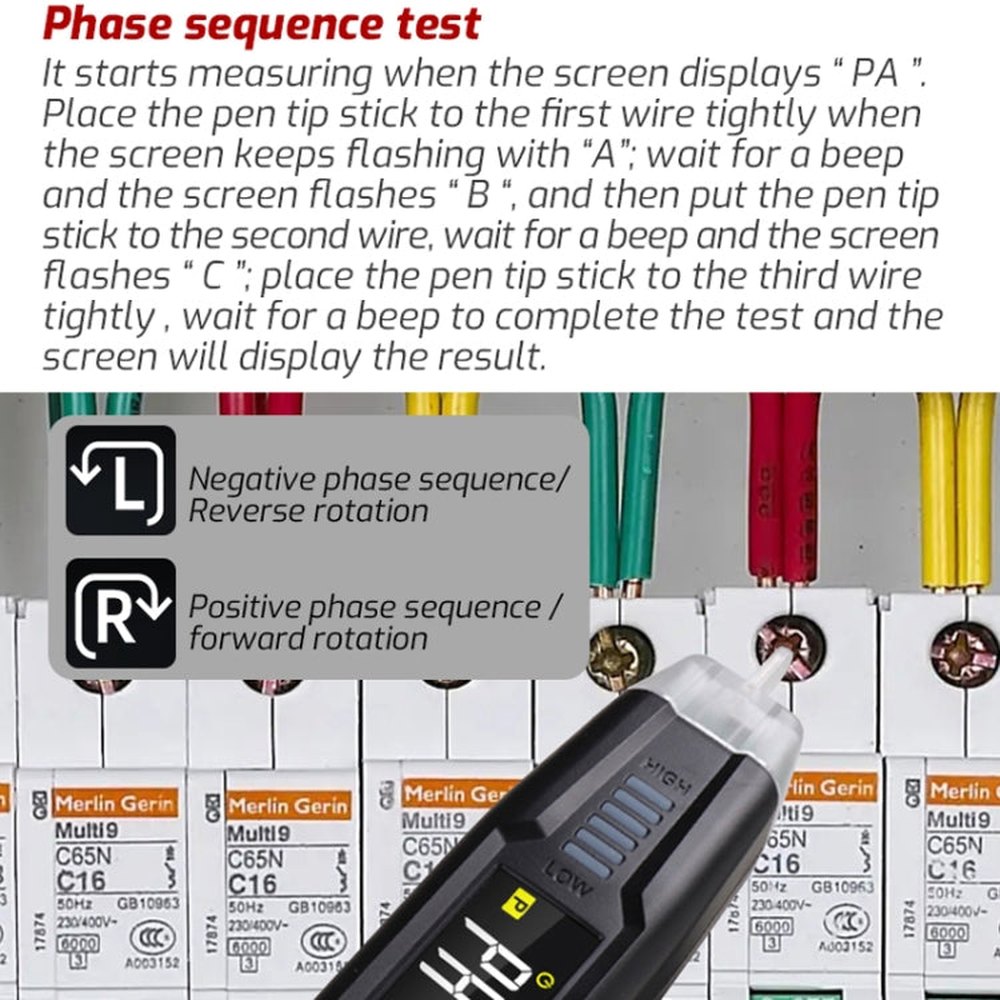

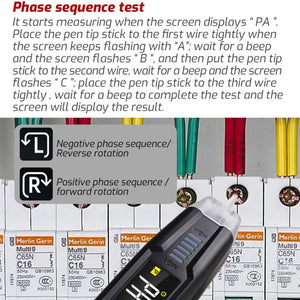

3. Phase sequence judgment, the screen shows PA, start measuring, display A constantly flashing will be the tip of the pen close to the first phase line, wait for a beep to show flashing B and then the tip of the pen close to the second line, wait for a beep to show a flashing C symbols, will be the tip of the pen close to the third line, wait for a beep to complete the test, the screen displays results

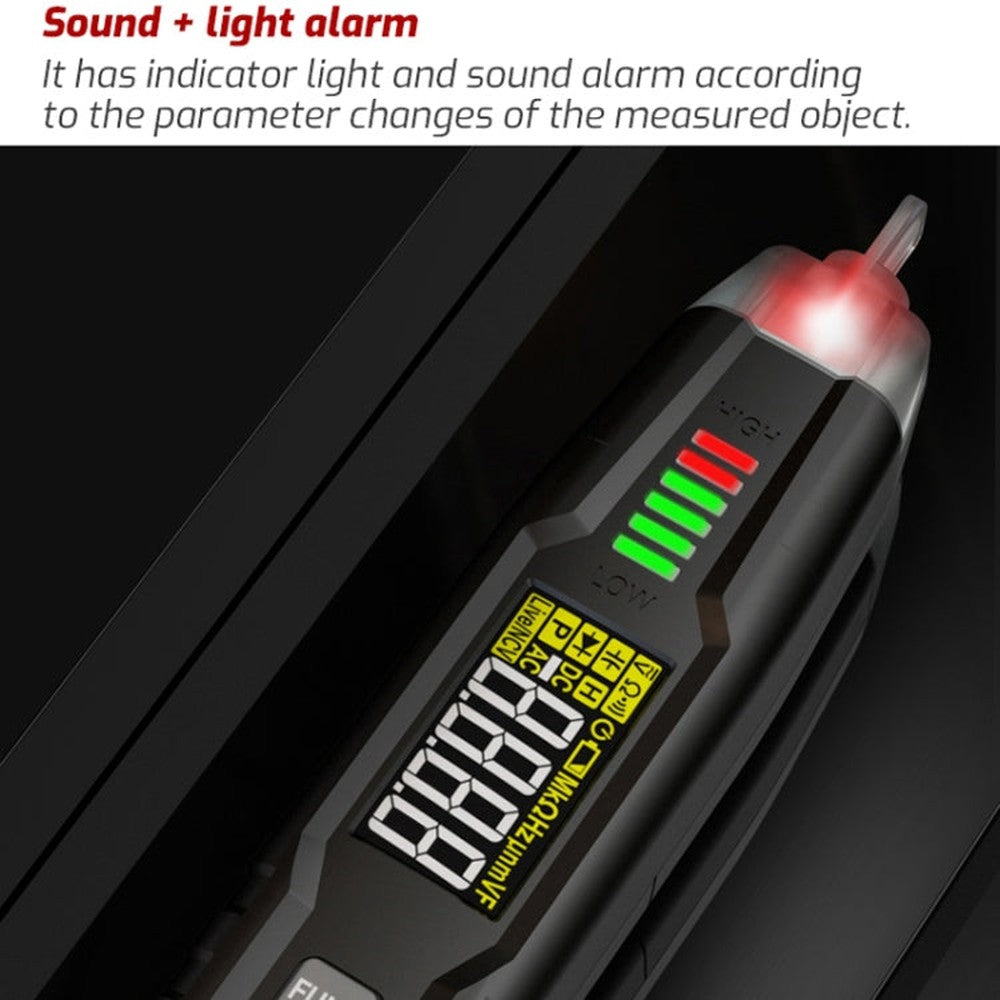

4. According to the parameters of the object under test, with indicator + sound prompts

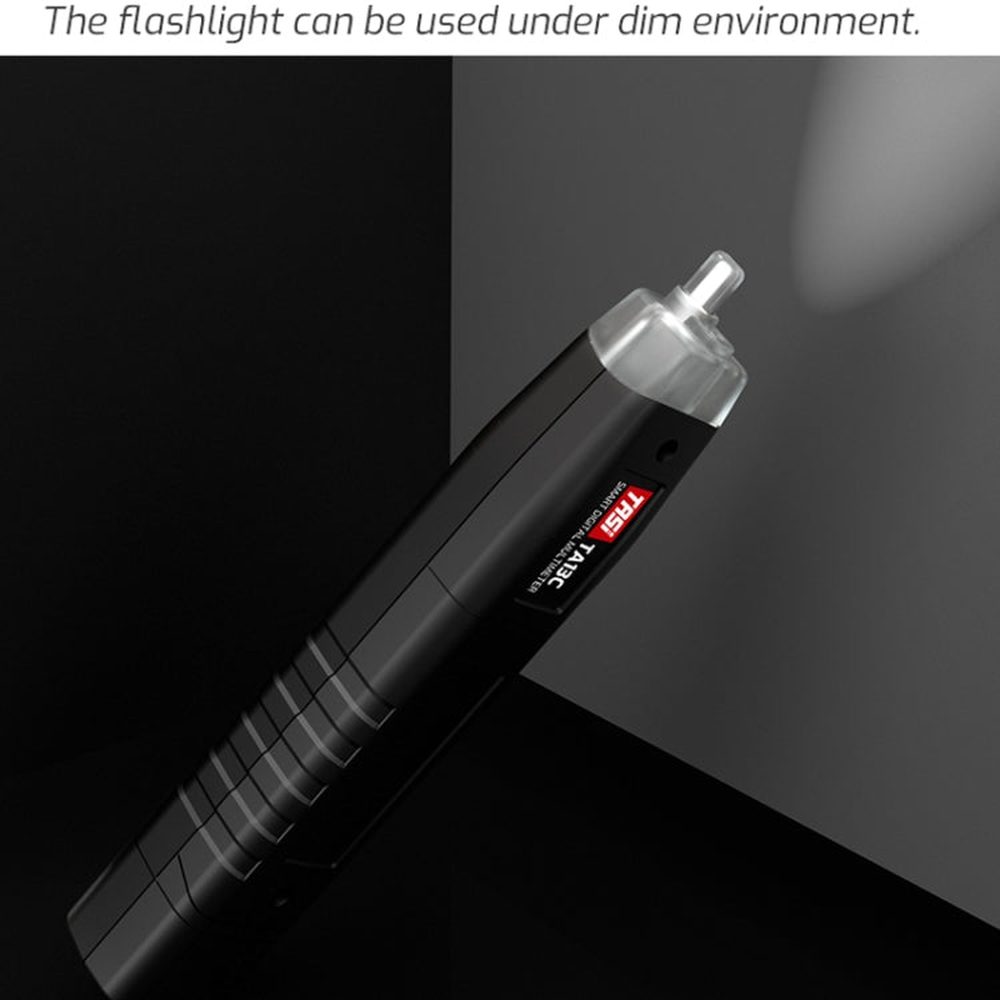

5. In the dark environment, you can turn on the flashlight lighting function
