SSU P.N.Junction Diode Characteristics A
- Special PriceGet extra ₹30 off (price inclusive of discount)
- Bank Offer0% Instant Discount* with HDFC Bank Debit and Credit Cards
- PhonePe Offer0% Cashback* on payments through PhonePe
- GST Invoice
Standard Delivery in 3-7 days.
No Cash on Delivery also available for this location.
PN Junction Diode Characteristics Apparatus is analog electronic lab equipment for which we are a considered an eminent supplier to our highly respected clients. Supreme quality material and technologically advanced machinery is used in its making at our vendors’ unit in compliance with the prevailing industrial norms and standards. PN Junction Diode Characteristics Apparatus hence stands high on quality, strength, performance, durability and effectiveness. Our apparatus is hence widely applauded and demanded in both domestic as well as overseas markets.
Forward & Reverse Characteristics of PN Junction Diode.
Technical Specifications :
- Inbuilt Variable DC regulated power supplies
- Output voltage : 0-3VDC, 0-30VDC
- On Board Analog Moving Coil Meters (60 mm x 35 mm )
- Voltmeter : 0-3V /0-30V DC (Dual range)
- Ammeter : 0-100uA/0-10mA DC (dual range)
- Switches & Diodes provided.
- SPDT : 2 Nos.
- DPDT : 1 No.
- PN Junction : OA-79 (2 Nos.)
- High quality Aluminum used as front panel of 270mm x 170mm & mounted on light weight shock proof plastic cabinet
- Symbol diagram printed on Aluminum Front Panel & all important test Points are brought out on front panel
- Power requirement : 230 VAC 10%, 50Hz.
- Weight : 1.5 Kg Approx.
- Dimensions (mm) : 300( L) x 175(B) x 75(H)
Standard Accessories :
Power chord, Patch chords & Instruction manua

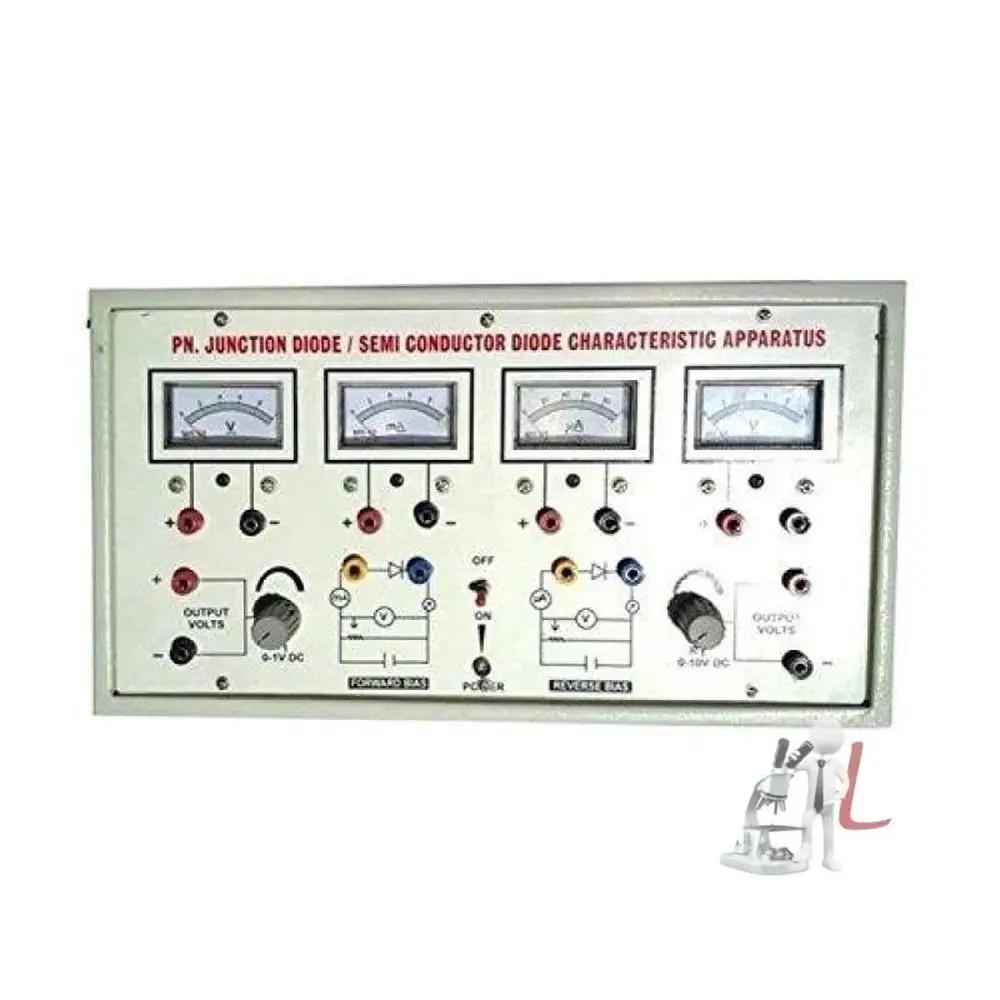

This instrument is used to study forward bias and reverse bias characteristics of a PN-Junction Diode. Four moving Coil D.C. Deluxe Meters are provided on the front panel of the instrument. Two independent D.C. Regulated Power Supplies (0-2V) and (0-20V) are provided with in the instrument.HT-121 Moving coil meters (Deluxe)
