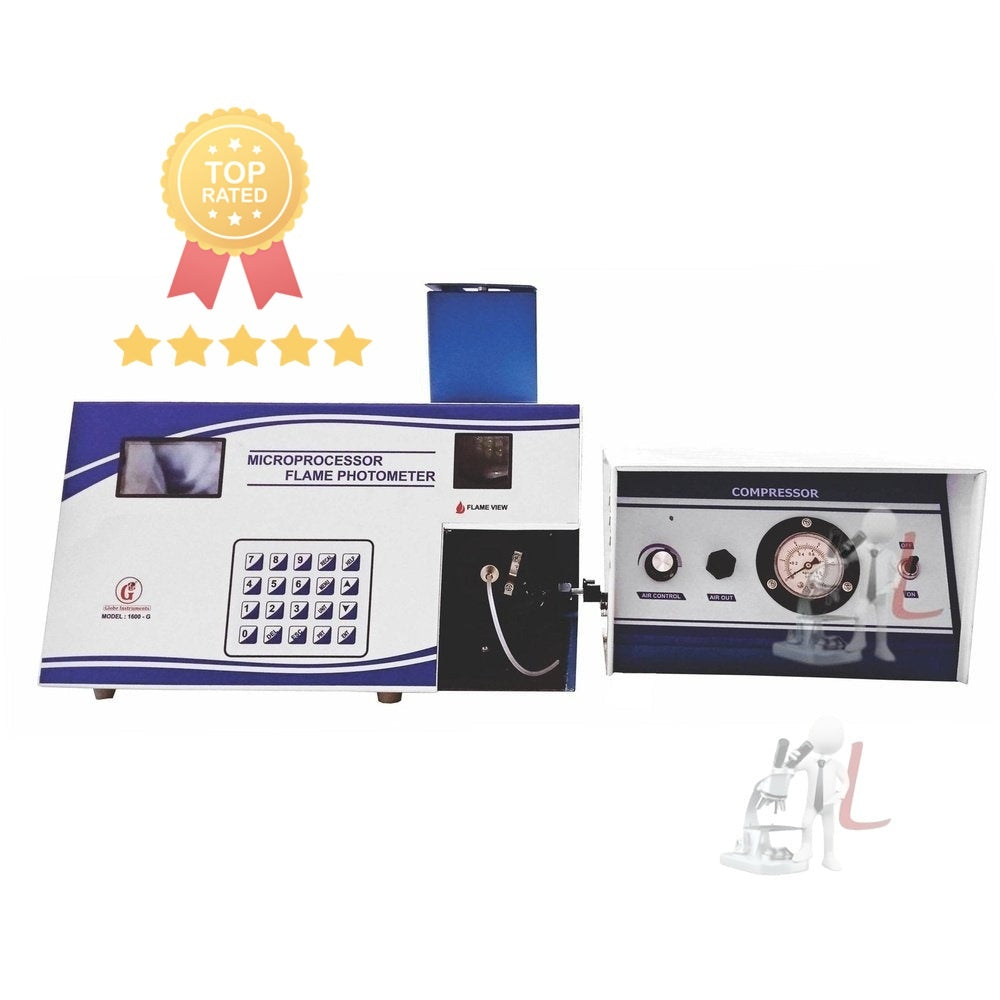

Microprocessor Flame Photometer (Na, K, Ca, Li)
flame photometer price
Microprocessor Flame Photometers 1600-G comes with Flame Failure detection and Auto Gas Cutoff Facility. In case of power failure, the gas cuts off automatically. In case the flame goes off accidently during work, the flame failure alarm sounds after a few seconds.
Microprocessor Flame Photometer 1600-G is used for the determination of Sodium, Potassium, Calcium, Lithium & Barium. They use the latest microcontroller technology and advanced engineering techniques to give enhanced accuracy and reproducibility. They have soft touch membrane keys for ease of operation.
The results are displayed on the 128 x 64 Graphical LCD with Backlit. The standard model comes with 2 filters (Na, K). Additional filters Ca & Li are optional at extra cost.
In this model, Calibration can be done with up to 25 standards of user choice (5 point for each element) and non-linearity correction is provided through an automatic curve fitting software. Multiple Calibration Curves can be stored in the memory. Facility has been provided for re-standardization with a single standard, thereby, eliminating the need of multiple standards once a calibration has been performed.
Salient Features:
· Microprocessor Based with Printer Interface
· Auto Gas Cutoff Facility
· Auto Flame Failure Detection
· Five Measurements in Single Aspiration of the sample
· Calibration Curve Programmability Using Maximum of 25 Standard
· Data Processing Through Curve Fitting Techniques- Least Squares, Quadratic
· Multiple Calibration Curves Saving Facility
· Printer Attachment Facility
· Measurement can be done in ppm as well as in meq
· Setup Storage Facility (up to 10 setup files)
· Sample Data Storage Facility
· Direct Results in ppm and meq.
· Online Help key
· Useful for both Medical & Soil Testing Applications
|
MODE
|
General
|
Serum (in meq/l)
|
Urine (in meq/l)
|
|||||||||||||||||||||
|
ppm
|
meq/l
|
|||||||||||||||||||||||
|
RANGE
|
|
0 – 200 1:100 dil.
0 – 10 1:100 dil.
–
0 – 2 1:5 dil.
–
|
0 – 250 1:100 dil.
0 – 100 1:100 dil.
0 – 10 1:2 dil.
–
–
|
|||||||||||||||||||||
|
Sensitivity
|
General: Na: 0.5 ppm, K: 0.5 ppm, Li: 0.5 ppm, Ca: 15 ppm, Ba: 50 ppm
|
|||||||||||||||||||||||
|
Filters
|
Na & K supplied {Ca, Li and Ba are optional at extra cost and can be factory fitted only}
|
|||||||||||||||||||||||
|
Resolution
|
0.1 ppm/0.1 meq
|
|||||||||||||||||||||||
|
Reproducibility
|
< 1% coefficient of variation for 20 consecutive samples using 10 ppm Na set as maximum standard
|
|||||||||||||||||||||||
|
Linearity
|
< 2% error when 3 ppm Na/K and 5 ppm Li are set as maximum standard
|
|||||||||||||||||||||||
|
Curve Fit Accuracy
|
< 2% of FS
|
|||||||||||||||||||||||
|
Display
|
128x64 Alphanumeric LCD with backlit
|
|||||||||||||||||||||||
|
Average Time
|
In-built in software
|
|||||||||||||||||||||||
|
Flame System
|
LPG and Dry Oil Free Air
|
|||||||||||||||||||||||
|
Detector
|
Silicon Photodiode
|
|||||||||||||||||||||||
|
Calibration
|
With up to 25 Standards of User Choice with Curve Fitting Software (5 for Each Element) Multiple Calibration Curves can be stored in the memory
|
|||||||||||||||||||||||
|
Gas Control
|
Adjustable with knobs
|
|||||||||||||||||||||||
|
Flame Failure
|
Auto Detection
|
|||||||||||||||||||||||
|
Gas Cutoff
|
Automatic
|
|||||||||||||||||||||||
|
Ignition System
|
Auto Ignition
|
|||||||||||||||||||||||
|
Atomizer
|
|
|||||||||||||||||||||||
After Sales Service
- Your inquiry and e-mail will be replied within 12 hours.
- If you need to develop product with your own specification, we have professional engineers to work it out.
- Never leave customer alone, solve problems with customer together.
- Customer first, quality first, service first
- 90% spare part available on laboraotorydeal.com
- Life time service available on laboratorydeal ( charges apply**)
FAQ
Q1: Are you a factory or trading company?
A: We are a factory.
Q2: MOQ?
A: We don't have MOQ limit, you can order any quantity you want. If you need products with your specification, logo, packing, etc, please negotiate with us.
Q3:Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere.But we think our cargos will better then any others. Samples will be 10%-20% higher than the cargo.
Q4:Can I add my logo on the machine?
A:Yes,OEM is available for us. But you should send us the Trademark authorization letter.
Q5:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay. For our range hood motors it is lifelong maintenance.
Q6:Do you have inspection procedures for these machine?
A:100% self-inspection before packing
Q7: Is this GST Invoice ?
A: Yes it is GST invoice
Q8:Does this product have GST amount added?
A:yes Including GST Amount
Q9:Is this GST Amount Refundable ?
A: yes, BTOB Sales and GST Number Require
