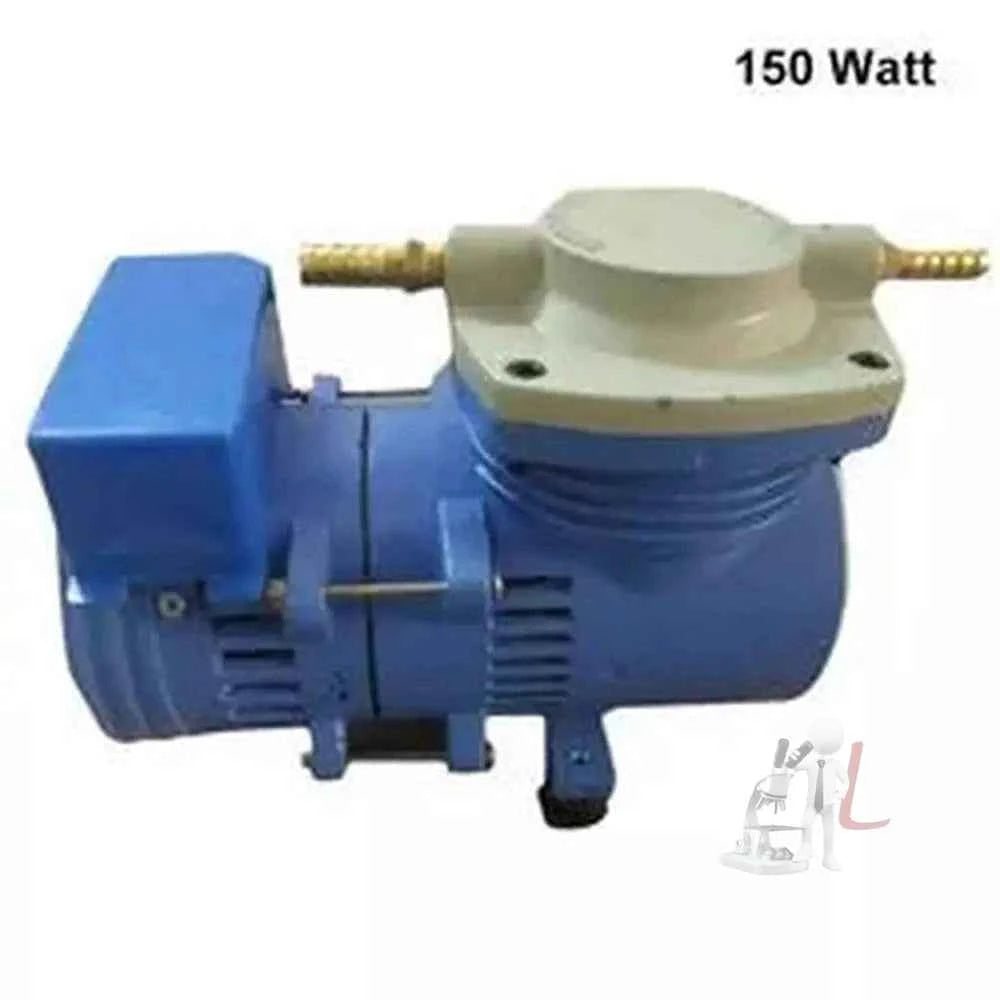

laboratory Oil Free Vacuum Pump

We have gained recognition as an eminent enterprise, devotedly engaged in offering a broad range of Vacuum Pump. Using quality approved material with the assistance of modern techniques, this pump is manufactured under the strict guidance of deft workforce at our well-established production unit. In addition to this, we provide our entire range in various specifications, in order to fulfill the varied requirements of our clients.



Features:

  • Industry approved design
  • Enhanced durability
  • Ruggedness

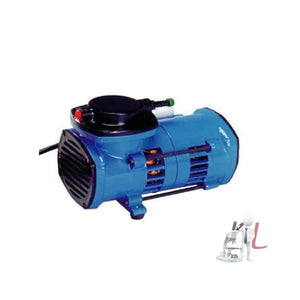

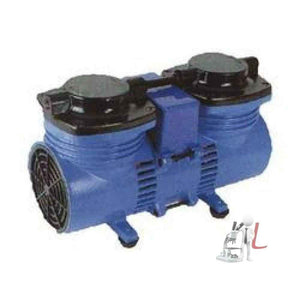

DIAPHRAGM VACUUM PUMPS

We offer 100% oil-free Diaphragm Vacuum Pumps/Compressors. They can be used either as vacuum pumps or oil-free compressors and are designed for delivery of uncontaminated air, gases or va pours. They are suitable for producing oil-free compressed air or vacuum.

ADVANTAGES:

  • Diaphragm type - hence no rubbing of parts and negligible wear & tear
  • Practically maintenance free.
  • No lubrication required, hence oil - free
  • Low operational cost of equipment. This results from the modest cost for replacement of diaphragm and valves.


FEATURES:

  • Heads are made of aluminum alloy castings
  • Diaphragms are made of neoprene rubber or other elastomers depending on applications
  • Specially designed motors in single - phase and three-phase constructions
  • Pumps are mounted on rubber pads for silent, vibration-free running
  • Due to compact design, these pumps are ideal for laboratories and original equipment manufacturers
  • Compact, light-in-weight, hence portable


APPLICATIONS:

Pollution Monitoring Equipment, Chemical Analyzers, Laminating press, Material Handling Equipment, Labeling Machines, Plastic Welding Machines, Gas Welding Machines, Soldering iron, Agitation of Chemicals in Tanks, Aeration.



Technical Specification:

MODEL

MAX. FLOW (Ltrs/min)

MAX. VACUUM (In./mm Hg)

MAX. PRESS. (PSIg)

APPROX. Weight (kg)

MOTOR HP

APPROX Dimensions (mm)

LAB-15

15

22" (554)

25

3.0

1/20

175X110X150

LAB-25-S

15

27" (680)

35

5.5

1/16

220X110X150

LAB-25-P

25

22" (554)

25

5.5

1/16

220X110X150

LAB-25-AX

15

27" (680)

--

--

1/16

--

LAB-45

45

22" (554)

35

7.0

1/8

200X125X200

LAB-45-CRP

30

22" (554)

10

7.0

1/8

220X150X220

LAB-75-S

45

27" (680)

55

12.5

1/4

300X130X200

LAB-75-P

75

22" (554)

40

12.5

1/4

300X130X200

LAB-75-CRP

38

22" (554)

10

--

1/4

--
