Coating Thickness Gauge

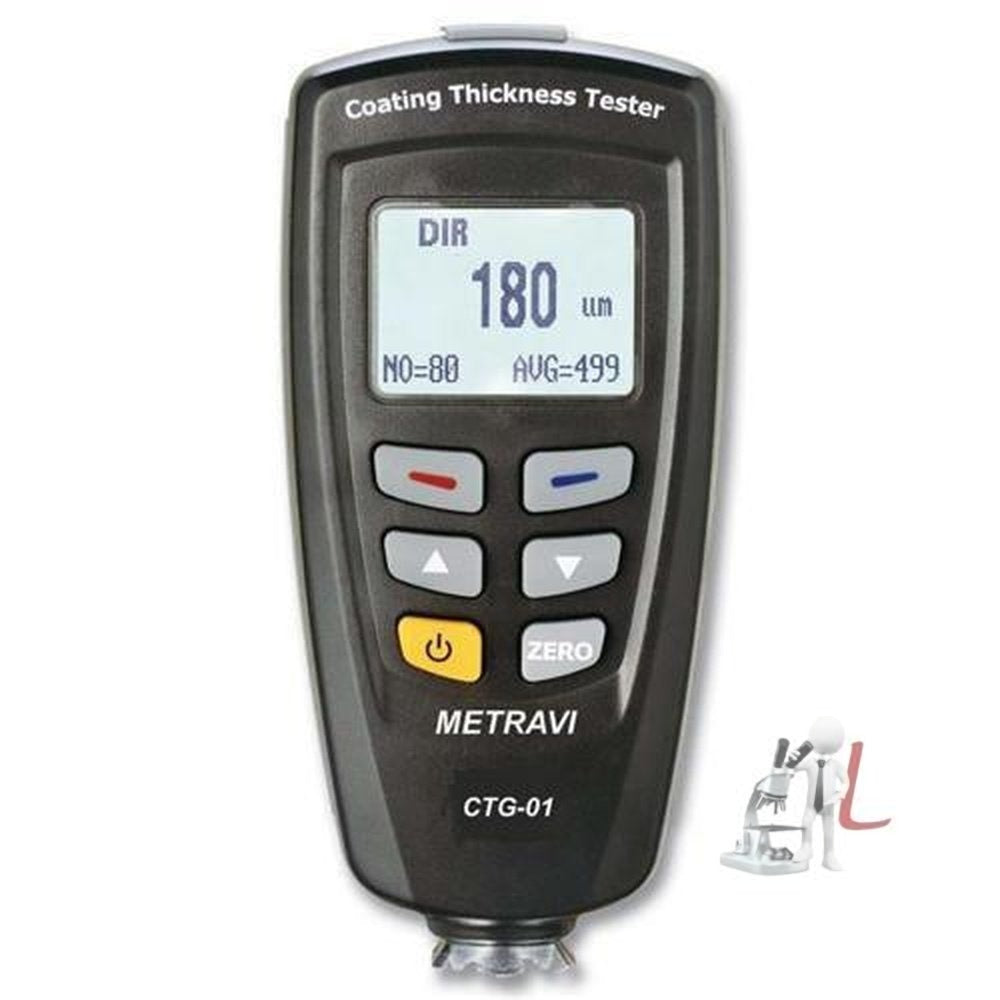

Coating Thickness Gauge (CTG-01)
The paint coating testing equipment is used to prevent corrosion on metal or any steel which is very essential to extend the life of the product and also improve its performance. The coatings are tested and applied in conformation with set industrial quality standards.
The compact and handy Coating Thickness Meter CTG-01 is used for the measurement of non destructive coating thickness. Works on magnetic induction principle or on eddy current principle, the model supports the measurement of both ferrous and non ferrous metallic substances depending upon the type of probe used. Ideal for paint shops and electroplaters, it is mainly used in the field of corrosion protection and can suitably be used in laboratories and workshops.
Application Industry
Chemical Industry
Automobile Industry
Shipbuilding Industry
Aircraft Industry
Light and heavy engineering Industry
Measures Coating thichness on both ferrous and Non Ferrous materials:
•Measures coating Thickness on both Ferrous and Non Ferrous materials with interface cable & S/W
•The CTG-01 coating thickness gauges work either on the magnetic induction or on the eddy current principle, depending on the type of probe used.
•You can select the type of probe via MENU system or it will work automatically.
•Operating with MENU Easily.
•Zero Calibrating Easily.
•Low Battery , error indication.
•USB Interface for PC analysis software.
•Disable Auto Power Off function via MENU setting.
•Measuring Ranges :-
•Ferrous : 0 ~ 1250um / 0 ~ 49.21mils
•Non Ferrous : 0 ~ 1250um / 0 ~ 49.21mils
•Guaranteed Tolerance :-
•Ferrous : ±3% 1um / ±3% 0.039 mils
•Non Ferrous : ±3% 1.5um / ±3% 0.059mils
•Precision :-
•Ferrous : 0.1um / 0.001 mils
•Non Ferrous : 0.1um / 0.001 mils
•Minimum Curvature radius :-
•Ferrous : 1.5mm / Non-Ferrous : 3mm
•Diameter of Minimum Area :-
•Ferrous : 7 mm / Non ferrous : 5 mm
•Basic critical thickness :-
•Ferrous : 0.5mm / Non Ferrous : 0.3mm.
Warranty : 12 months warranty against any manufacturing defects.
