Cam Analysis Apparatus

laboratory deal

Rs. 54,000.00 Rs. 32,000.00

Sold in last 3 months

20

5 Cash Back to

Real time Visitor right now

Trust & Payment

Cam Analysis Apparatus

Phase 1/2 Phase
Speed 9999 RPM
Voltage 230 V A.C
Bench area 0.5 m x 1 m
Packaging Type Wooden Box
Material Mild Steel

Product Description

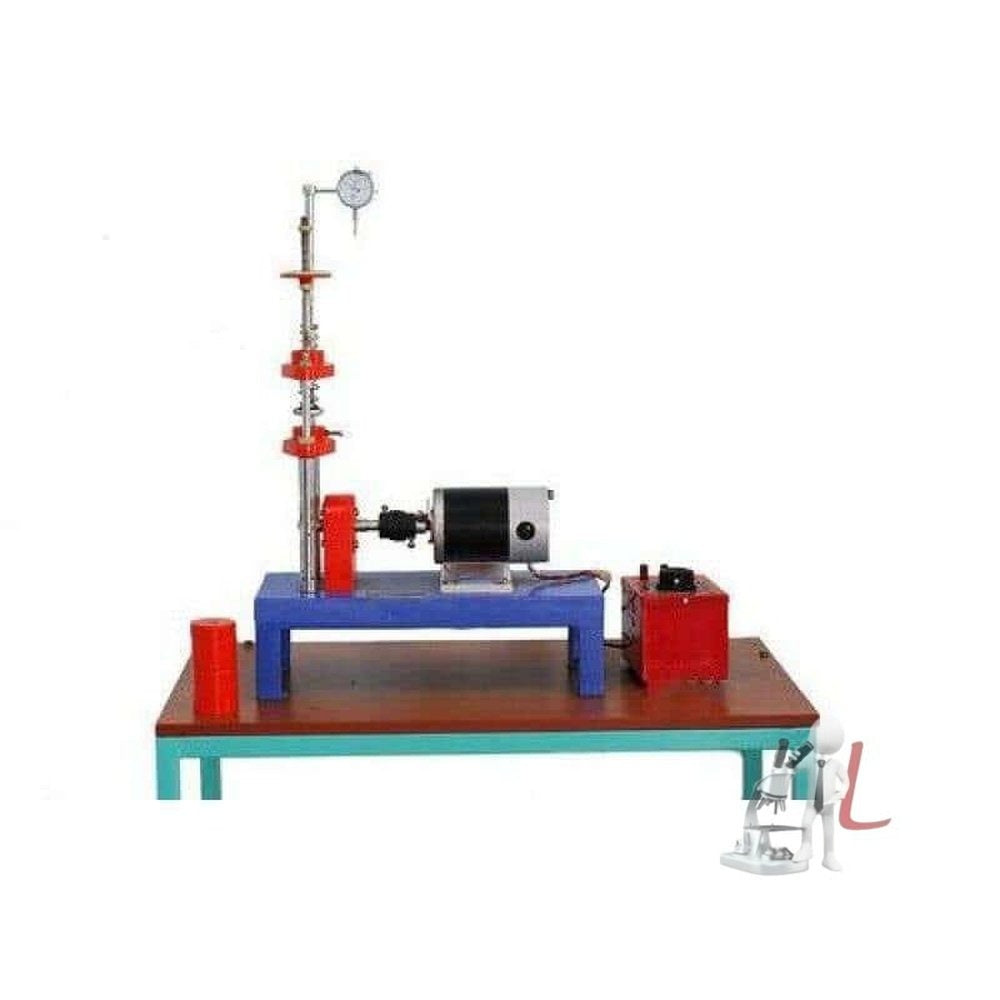

The unit consists of a cam profile and study of cam follower system. The instrument consists of cam mounted shaft supported by ball bearing upon which three different type of cam can be mounted. The push rod for follower is supported vertically which can adopt three different type of followers can be changed easily. Motor rotates the cam and dial gauge is provided for plotting of follower displacement W.R.T. cam position. Cam jump speed can be found by operating different speed and effect of speed and spring force on jump speed can also be studied.

Specification:

  • Cam Eccentric, tangent, circular.
  • Follower Knife edge, roller type & mushroom type.
  • Variable speed motor coupled to cam shaft of suitable range and various speeds.
  • A dial gauge.
  • The unit is mounted on sturdy base.

Range Of Experiments:


  • Plotting and analysis of the X-0 curve.
  • The velocities and accelerations of the follower may be derived and hence inertia forces plotted over the whole lift period. The condition of follower bounce can clearly be shown
  • by carrying out theoretical calculations & graph from X-0 curve
  • Test can be repeated by changing parameters like various compression springs,
  • Follower weights and cam speed.
  • To study the effect of follower weights (W) on the speed of bounce.
  • To study the effect of initial spring compression (S) on the peed of bounce.

Service Required:

  • 230 V A.C supply.
  • Bench area of 0.5 m x 1 m at working.

Product Image

Cam Analysis Apparatus
