Bod Incubator 112 Liters

2 sold in last 8 days
lab_875320
In stock
Live  Bulk Order and Quote  Group Joining for bulk offers  Program Videos  gem order book Manufacturer chat
Registered Manufacturers in LaboratoryDeal
Sale Ends Once The Timer Hits Zero!
(*) Discount will be automatically applied at checkout, no discount code required.
(*) Win up to Rs 25 cashback on AmazonPay Wallet
(*) Get up to Rs.250 cashback via Mobikwik
(*) GST Invoice available
(*) Mail/SMS notification
(*) Multiple payment opations
Delivery Time
INR 76,000.00 INR 38,000.00
INR 38,000.00
Add to WishList
customers are viewing this product

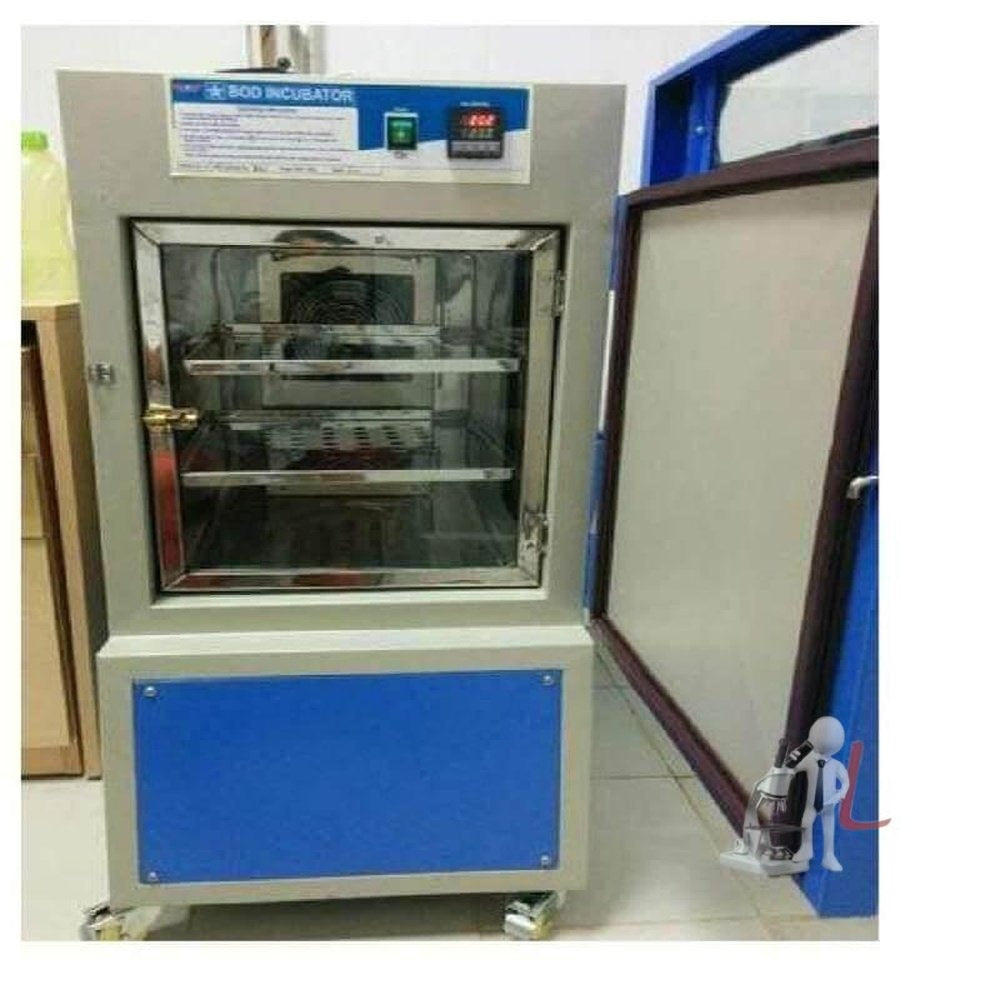

Bod Incubator

Bod Incubator

Bod Incubator

Model : BOD171

Digital Temp Controller

The full from of BOD Incubator is Biological Oxygen Demand incubator and it is widely used in microbiology laboratories for the applications that include cell culture and fungal growth, BOD test, fermentation, crop and physiology and various pharmaceutical tests etc. It is also known as low temperature incubator or refrigerated incubator because it is made with temperature range between 5°C to 60°C or with cooling and heating functions under one unit.

DIFFERENCE BETWEEN INCUBATOR AND BOD INCUBATOR

The basic difference between an incubator and BOD incubator is temperature. A general purpose incubator has only heating option and is usually operated at 37°C; while a BOD incubator also known as cooled incubator has both cooling and heating options and usually operated at low temperatures such as 10°C and 21°C.

BOD INCUBATOR WORKING PRINCIPLE

Electricity is supplied through mains MCB. Temperature is set through digital PID temperature controller, usually at 20°C. Machine is kept running for 5 days. Refrigeration system starts just after setting temperature. Axial fan circulates air inside chamber. Temperature sensor senses current temperature and give data to PID controller, which furthermore keeps the set temperature constant till desired time.

DETAILED DESCRIPTION

  • Temperature: Standard temperature range of our BOD Incubators is 5°C to 60°C. In incubation process, temperature accuracy and uniformity both are important; therefore, our BOD incubators are equipped with digital PID controller supported by PT100 sensor for temperature settings that displays both SV (set value) and PV (process value). Temperature accuracy is ± 0.5°C and uniformity remains ± 1°C.
  • Illumination: For illumination, we use fluorescent or LED light, which is door operated use can also individual switch it On or OFF permanently. As an option, we also provide 3 tube lights on door with digital cyclic timer in to control the illumination 24x7 weekly.
  • Safety: There are some safety features in our BOD Incubators such as over temperature and over current protection and temperature low and high limit buzzer alert etc.
  • Cooling: For cooling temperature under BOD Incubator, we use CFC free refrigeration system of reputed brand in the market such as EMERSON or Godrej.
  • Heating: Heating is done by ISI mark U shaped tubular air heaters.
  • Air circulation: Air circulation is mandatory to spread uniform temperature inside the chamber; for this we use axial fans or motorized blower system.
  • Construction: Our BOD incubators are made keeping durability in mind. Construction is durable and double walled; exterior is made of thick mild steel and powder coated; while, interior is made of stainless steel. The gap between these two walls is filled with PUF insulation. Outer door is solid and there is also an inner door made of glass to view samples. Outer door has mechanical door lock and key.
  • Trays: Each BOD Incubator is provided with 2 to 5 removable trays. These trays are removable and height adjustable and made of steel wire mesh cable. We also provide perforated stainless steel trays as option.
  • Options: We offer some options to our customers with little added cost. These options are 21 CFR software, PC interface and PLC based HMI controller with USB interface and validation port at either side of the machine. We also make GMP BOD Incubators with complete stainless steel construction.



We are BOD incubator manufacturers and suppliers in India. Our standard models can be bought at highly competitive price with excellent warranty terms, price and performance guarantee. We also make customized units at factory price based on specific requirements of each customer.



BOD INCUBATOR DIAGRAM

  1. Exterior
    2. Inner chamber
    3. Toughened glass window
    4. Air circulation fan
    5. Removable tray
    6. Temperature sensor
    7. Door hinges
    8. Door handle with lock & key
    9. PID temperature controller
    10. Analog ampere meter
    11. Pilot lamp
    12. Safety thermostat
    13. On/Off MCB
    14. Refrigeration system
    15. Power cord
    16. Caster wheels
    17. Solid door
    18. Heater



TECHNICAL SPECIFICATIONS

Temperature Range

5°C to 60°C

Temperature Accuracy

± 0.5°C

Temperature Uniformity

± 1°C

Temperature sensor

PT-100

Temperature Controller

  • PID temperature controller
  • LED display of SV & PV

Construction

Double walled with PUF Insulation

Inner Construction

Stainless Steel 304 grade

Exterior Construction

Powder Coated GI sheet

Exterior Door

Solid door with lock & key

Inner door

Glass door to view samples

Trays

Wire mesh cable trays (removable)

Interior illumination

LED Light

Heating Element

U-shaped SS tubular heaters

Refrigeration System

CFC Free Compressor

Air Circulation

Motorized Blower / Axial fan

Safety

Temperature High / Low alarm

Power supply

220 Volts 50 Hz

Optional

  • Digital event timer
  • Illumination with 3 florescent lights
  • Digital cyclic timer 24 x 7
  • 21 CFR Software for data recording
  • RS485 computer interface
  • Exterior SS 304 / SS 316 (GMP Model)
  • Stainless steel preforated trays
  • Data logger with USB Interface
  • Humidity system
  • Door open buzzer
  • PLC & HMI controller with USB interface
  • 50 mm validation port hole to insert sensor or wire
  • IQ, OQ & PQ Documentation
  • Caster wheels with brake



STANDARD DIMENSIONS / SIZES

Model

Dimensions (w x D x H)

Volume

No. of Trays

BOD112

455 x 410 x 610 mm

112

2

BOD171

505 x 415 x 830 mm

171

2

BOD280

565 x 565 x 865 mm

280

3

BOD336

650 x 580 x 900 mm

336

4

BOD420

700 x 580 x 900 mm

420

5

BOD800

800 x 800 x 1250 mm

800

5

BOD1000

800 x 800 x 1550 mm

1000

5







Need Customization?
Let us design your BOD incubator as you need







FEATURES & BENEFITS

  • Digital PID temperature controller
  • Digital timer 99:99 hr
  • Temperatrure Low / High variation alarm
  • Fire resistant insulation compliant to BS476 Class "O"
  • Height adjustable stainless steel shelves
  • Illumination through LED lamp
