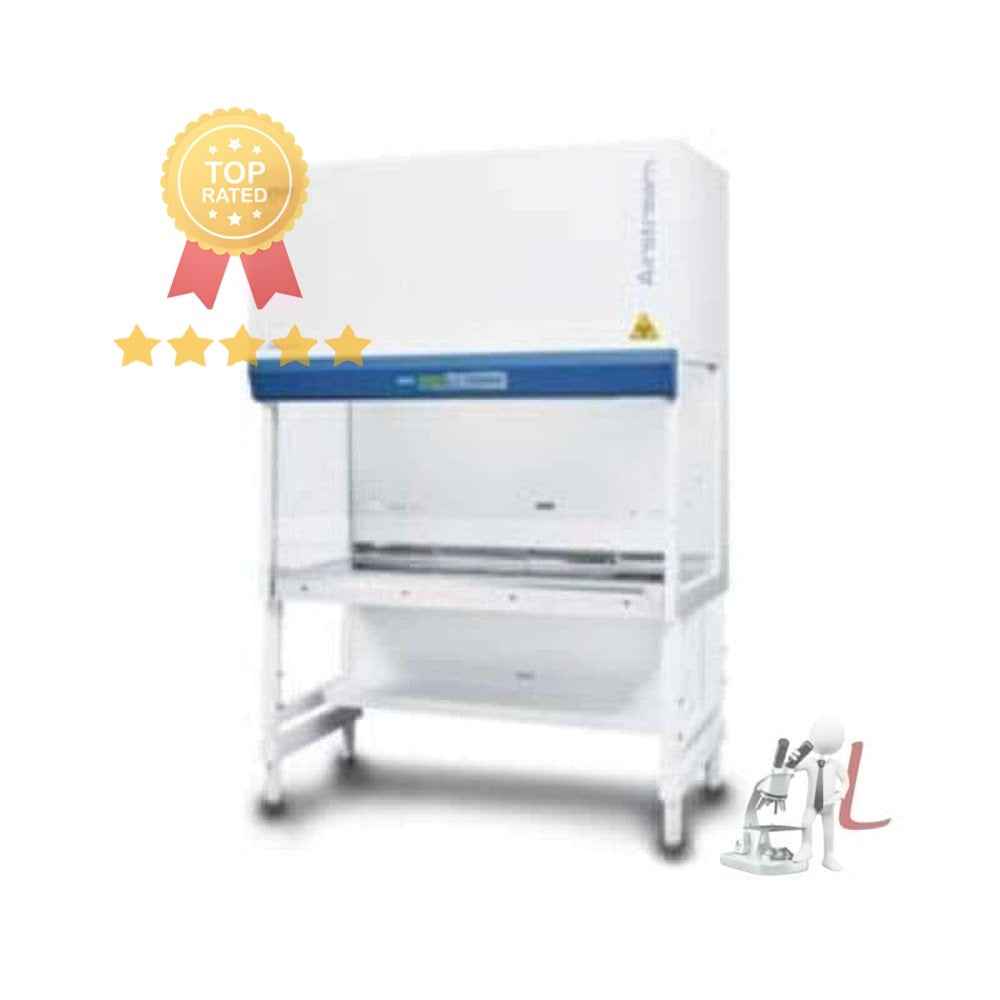

Biological Safety Cabinet
- “BIOSAFETY BIOLOGICAL SAFETY CABINET Class II re-circulates 70% of air through HEPA filter & 30% Exhaus
- LABPRO" Biosafety Cabinet is used to protect personel, product and the environment from exposure to biohazards and cross contamination during routine procedures.
- Used for various applications in the life science, clinical, pharmaceutical and industrial laboratory.
- These Cabinets are designed to provide 3 basic types of protection.
- Personnel protection from harmful agents inside the cabinet.
- Product protection to avoid contamination of the work, experiment or process.
- Environment Protection
- Low Cost.
- Low Noise.
- User Friendly Ergonomic Design.
- Controlled Environment Particulate Free Product Protection.
- Work area surrounded by negative pressure, double wall plenums for protection.
- Aerodynamic designed airflow grille maintains safety by preventing blockage.
- Silent Vibration
- Free Blower ensure noiseless operation.
- Sound level no more than 65 dbA.
- The Unit is suitable for CLASS 100 conditions.
- 70% of the air is re-circulated through the HEPA filter.
- The contaminated air is drawn by the blower through the plenum of the cabinet.
- 30% of the air is exhausted from work area.
- Filtered Exhaust - protects ambient environment, and avoids build up, air borne particles.
- The exhaust of Safety Cabinet is connected to the Virus Burn out Unit for product and personnel protection.
- Air is drawn through Pre-Filter and is made to pass through high effective HEPA (High Efficiency Particular Air) filters.
- The efficiency of HEPA Filter is greater than 99.97% down to 0.3 micron.
- Basic material is thick board wood front back top and exterior surfaces are covered with Formica. OR Cold rolled steel duly powder coated OR Stainless Steel (SS-304) (as ordered).
- Working table is made of Stainless Steel Sheet (SS-304 grade).
- Window opens to 20cm±5mm working height with predefined locking device.
- Built in U.V. Germicidal light
- Facilitates sterilization of working area before and after use. Cock - for gas, air or vacuum, (only 1 no.) is provided.
- Working area is illuminated by fluorescent lighting fitted to the unit.
- The blower and motor assembly is statically and dynamically balanced of 1/5 H.P. capacity operates with minimum noise level.
- Height of the working table provides comfortable "SIT DOWN" working position for the operator.
- Supplied complete with cord & plug to work on Single Phase 220 / 230 volts A.C. supply.
| Model No | BSC-1 | BSC-2 | BSC-3 | BSC-4 |
| Working Table Size | 2' x 2' | 3' x 2' | 4' x 2' | 6' x 2' |
| Working Size | 2' x 2' x 2' | 3' x 2' x 2' | 4' x 2' x 2' | 6' x 2' x 2' |
| HEPA Filter Size | 2' x 2' x 6" | 3' x 2' x 6" | 4' x 2' x 6" | 3' x 2' x 6" |
| No. of Motor/Blower | 1 | 1 | 1 | 1 |
| Illumination | 1 x 40 w | 1 x 40 w | 2 x 40 w | 2 x 40 w |
| Cabinet Materiel | Wooden or Cold Rolled Steel Powder Coated or Stainless Steel (SS-304) | |||
| Work Table | Stainless Steel (SS-304 grade) | |||
| View Window | In work chamber to monitor the samples | |||
| Main Filter | HEPA Filter (99.97% efficient at 0.3 micron particles) | |||
| Pre-Filter | High efficiency pre-filter (Washable) | |||
| Sterlization | By U. V. Germicidal Tube in work area | |||
| Manometer | Static pressure analogue type. | |||
| Sliding Sash | Counter balanced door for effortless operation | |||
| Noise Level | Less than 65 db | |||
| Standard Accessory | Gas/Air cock and Multipoint 15/5 Amp. electric socket | |||
| Electric Supply | AC 230V, 50/60Hz | |||
| Static Pressure Manometer | Can be provided at an extra cost |
| Exhaust Ducting | Per running feet cost will be charged extra |
| HEPA Filtration at exhaust | Can be done at an extra cost |
| Virus burn out at Exhaust | Can be done at an extra cost |
| Magnehelic pressure differential gauge | To track filter pressure in lieu of static pressure manometer (Can be provided at an extra cost) |
| Interlocking of U.V . germicidal tube & fluorescent light | with auto switch off/on mode for motor blower when the door is closed/open |
| Hour meter totalizer for U.V . light | Can be done at an extra cost |
| Glove Ports and Gauntlets | Can be done at an extra cos |
| Fumigation Tray – for effective disinfection/ decontamination | Can be done at an extra cost |
| Electronic filter choke alarm (Differential pressure monitor). | Can be done at an extra cost |
| Microprocessor LCD controller | With auto switch off mode for motor blower when door is closed. |
| Digital buzzer timer | Sounds an audio alarm on completion of sterilizing time of the chamber |
