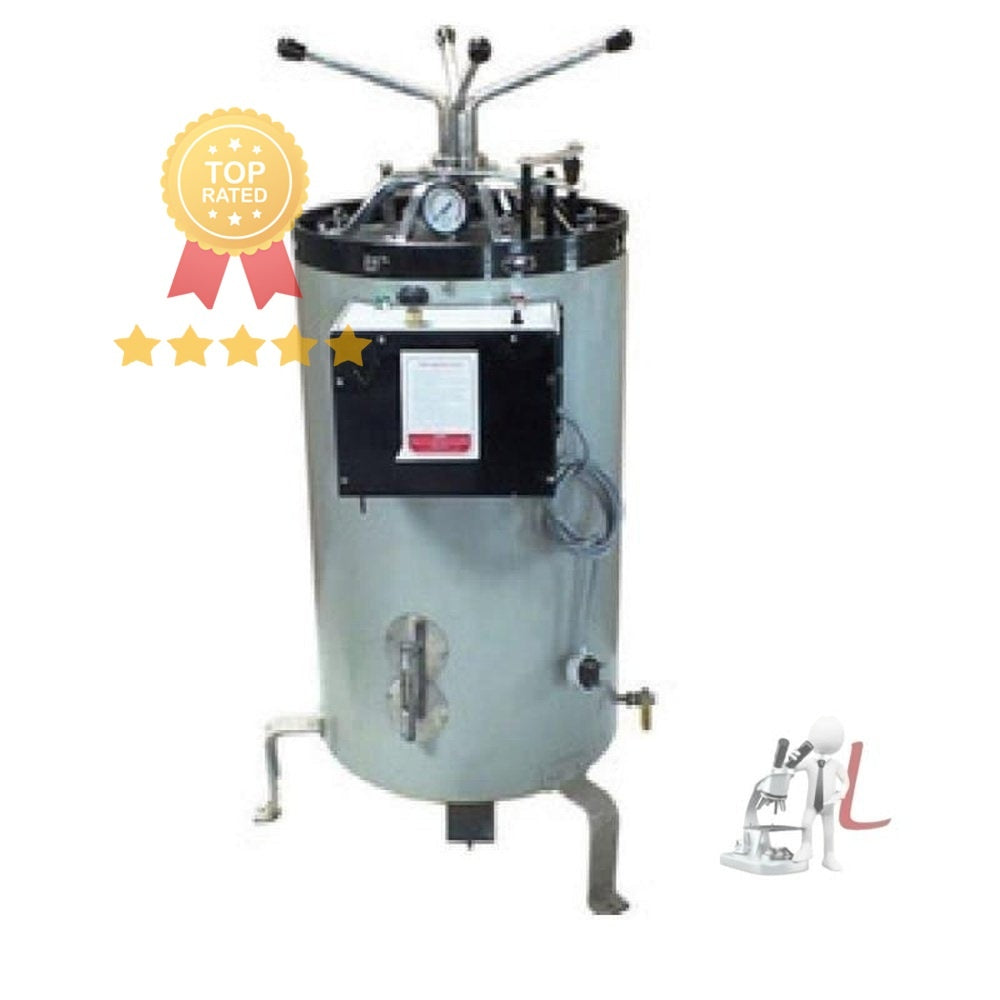

VERTICAL AUTOCLAVE

Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. These are widely used in hospitals, Operation Theater (OT), microbiology laboratory for sterilization of various medial and cultures. The working of vertical autoclave is simple to understand; to open, a radial locking mechanism is fitted at top of the lid; a foot lever (pedal) is attached at the bottom. User has to press the pedal and lift the lid.

We make various types of vertical autoclave machines as per budget and intended use. Economy models come with powder coated MS exterior and stainless steel interior. Our Deluxe models are double walled vertical autoclaves and made with inner and exterior both of stainless steel; while the Triple Walled models have another chamber and all three walls are made of thick gauge of stainless steel sheets. At Stericox, we make every vertical steam sterilizer following ASME guidelines in order to ensure that they are safe for users and samples.

We have over 40 years of experience in autoclave manufacturing and in these years, we have participated in many Govt. tenders and successfully installed our semi and fully automatic vertical autoclaves in top hospitals in India. Furthermore, these machines have been acclaimed by industry experts because of ergonomic design, easy working and reasonable price.

FEATURES & BENEFITS

  • Stainless steel interior
  • Digital temperature indicator
  • Digital temperature Controller
  • ISI marked flange / immersion heating elements
  • Up to 121°C temperature range
  • Silicone rubber gasket
  • Automatic pressure control switch
  • Stainless steel basket
  • Reliable steam pressure gauges
  • Double or triple walled construction
  • Pedal for lid opening
  • Water level indicator
  • Water inlet & outlet valves



TECHNICAL SPECIFICATIONS

Construction

Economy Model

Double Walled Model

Triple Walled Model

MOC Exterior

Painted MS sheet

SS 304 (mirror finish)

SS 304 mirror finish)

No. of walls

Two

Two

Three

Lid

Polished MS

SS 304

SS 304

Interior

SS 304 with silicon gasket

Working Pressure

15 to 20 psi

Working Temperature

121°C to 125°C

Controller

Auto set to 15psi & 121°C

Pressure display

Analog dial gauge

Timer

Mechanical timer

Hydraulic tested

Hydraulically Tested up to 40 psi (ASME Guideline)

Basket

Stainless steel basket

Stainless steel basket

Not Required

Power supply

220 Volts 50Hz

Standard Fittings

  • Low water indicator
  • Automatic pressure switch
  • Pedal lifting device
  • Steam release valve
  • Water outlet valve
  • Spring loaded safety valve
  • Power cable with three pin top

Optional Accessories

  • Fully stainless steel construction (GMP)
  • Up to 134°C temperature range
  • PID temperature controller cum timer with alarm (buzzer)
  • PLC with HMI interface with data logging
  • 21 CFR Part 11 software
  • Thermal Printer
  • Lower water cut-off

STANDARD SIZES / DIMENSIONS

Dia. x Height

Volume

Watt

250 mm x 450 mm

22 liters

1 KW

300 mm x 500 mm

35 liters

2 KW

350 mm x 550 mm

50 liters

3 kw

400 mm x 600 mm

75 liters

4 kw

450 mm x 600 mm

95 liters

4 kw

450 mm x 750 mm

120 liters

5 kw

550 mm x 750 mm

175 liters

6 kw
